Coralux 5UP LDD driver board

Coralux 5UP LDD driver board

Regular price $13.25 USD
Regular price Sale price $13.25 USD
Sale Sold out

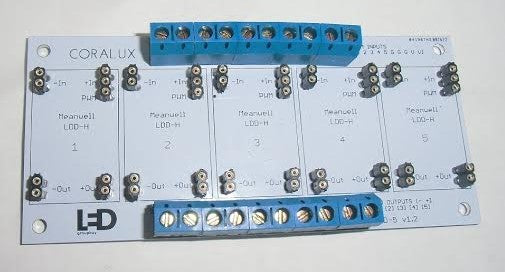

This is a fully assembled 5-channel PCB carrier board for the popular Meanwell LDD-H series of PWM constant current drivers. Use it to build up your custom drivers using the MeanWell LDD-H series of buck drivers. It can be configured to provide specific current capabilities (limits) for each channel such that it is perfectly suited to your setup. This is a perfect match for the 5-channel new Lumia 5.1 and CREE Lumia 5.2 LEDs. This board is commonly referred to as the "LDD 5up." The design includes 10K pull-down resistors (pre-soldered to the PCB) to shut off the LED outputs if the PWM signal is disconnected (such as when a controller is reset). This avoids the common problem of having the LEDs go to 100% brightness when the controller is reset. Also includes all pre loaded terminal blocks and LDD quick mounts.  Plug and play with no soldering needed. Board Dimensions: 4.3" x 2" Mounting Holes: 4" x 1.7" Diameter 3mm Pre-soldered 10K pull-down resistors on each channel Pre-soldered terminal block Pre-soldered LDD quick mounts Compatible with Meanwell LDD-350H, LDD-500H, LDD-700H, LDD-1000H 1-Yr Warranty Does NOT include LDD drivers. MeanWell LDD-H Series Datasheet Does NOT include LDD drivers.  You can choose up to five here:  Meanwell Drivers  ("H" series only - Not "HW") MeanWell LDD-H Series Datasheet
