LED Group Buy

Makers Heatsink SLIM

Makers Heatsink SLIM

Regular price $15.85 USD
Regular price Sale price $15.85 USD
Sale Sold out

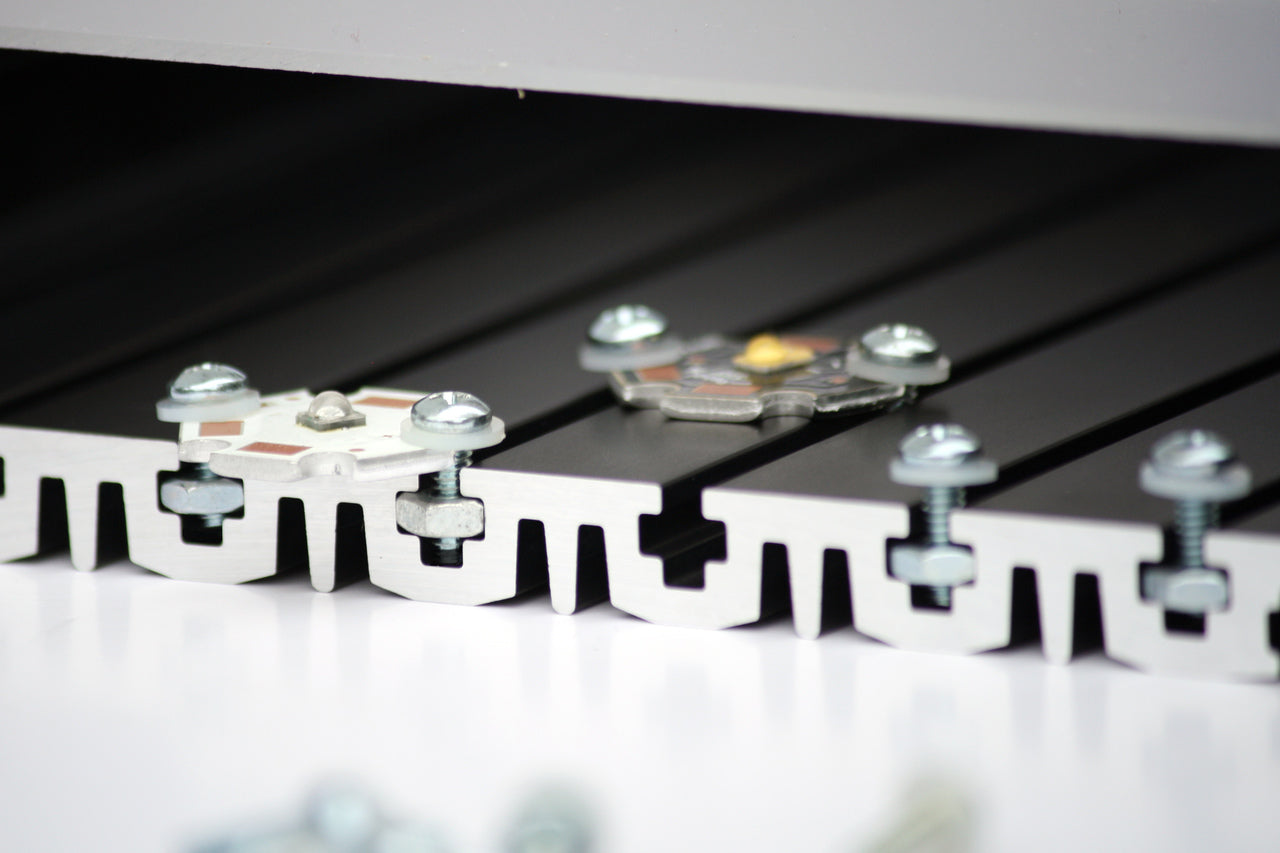

It’s Slim: 1.5 inches thick, 6.2 inches Wide thermally optimized, 392 square inches total surface area per foot 6063 heatsink grade aluminum tempered and anodized for durability black anodized for improved heat radiation 7 lanes of LED mounting area   The Kit Includes: cut to length heat sink housing black anodized to protect finish and improve radiant heat transfer 1/16″ [1.5mm] clear acrylic splash guard two plastic end caps [injection moulded ABS plastic] stainless steel assembly hardware [on exposed parts] 4-40 screws and nuts, enough for 25 LED’s [per 12”]* nylon washers, enough for 25 LED’s [per 12”]* *nano fixtures (6″) include enough hardware for 12 LEDs, 18” fixtures include enough hardware for 37 LEDs.   t-Slots for Ease of Use and Flexibility MakersHEATSINK SLIM uses “t”-slots for ease of LED mounting and re-configuring (patented and pending). Why be locked into a particular LED package, color spectrum, or vendor when you don’t have to? Why use screws? Screws help reduce the thermal resistance of your LEDs – by increasing contact pressure with the heatsink, keeping LEDs cooler.     How Many LEDs? The kit includes enough hardware to mount 25 LEDs per foot. The heatsink has enough area to mount ~85 star LEDs/foot, but it is not practical to keep this many LEDs cool in such a small area. MakersHEATSINK SLIM is a solid extruded piece aluminum with no large milled out fan pockets or thermal voids. A 1 foot SLIM heatsink in open air will cool approximately: 33 watts of LEDs with no fan 85 – 100 watts of LEDs with a Fan Example: One Lumia 5.2 @ 70W will run at a cool temperature of 85F [29C] on the backside of the the heatsink (with a fan) If you need more cooling power, check out the heavier duty classic MakersLED Designer Heatsink Kit - Professional Grade - Anodized   Options (Sold Separately) Frameless Fan – MakersLED SLIM Heatsink Fan Frameless 92mm (Fan Cover 3D Model for 3D Printing Available here) Additional Mounting Hardware – Coming Soon (5/16” length #4-40 screws, nuts, washers) Hanging Kit for MakersLED Heatsink Driver: MakersDRIVER 5UP Pro - Drive up to 70 LEDs! (Compatible with the MakersDRIVER 5UP PRO) Controller: Makers CONTROLLER - Sunrise / Sunset controller for MakersDRIVER LED:  CREE Lumia 5.2 - 70w Full Spectrum 5 Channel CREE LED (Compatible with the MakersDRIVER 5UP PRO)
