MakersLED

MakersDRIVER 5UP Pro - Drive up to 70 LEDs!

MakersDRIVER 5UP Pro - Drive up to 70 LEDs!

Regular price $61.50 USD
Regular price Sale price $61.50 USD
Sale Sold out

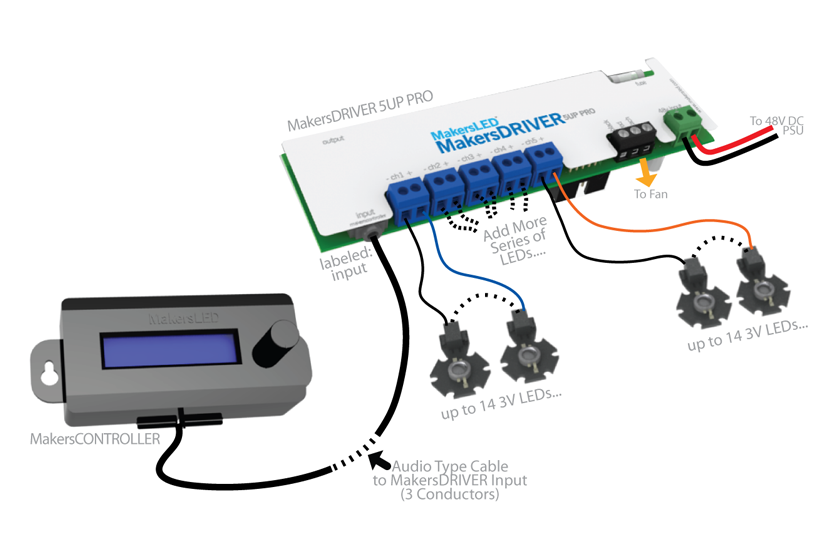

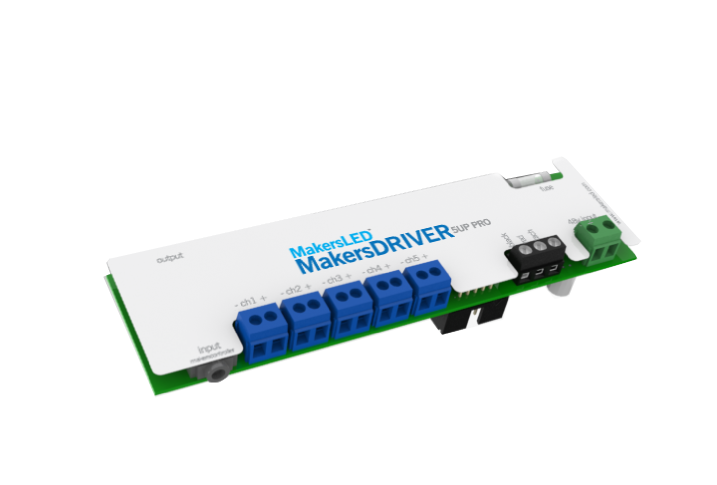

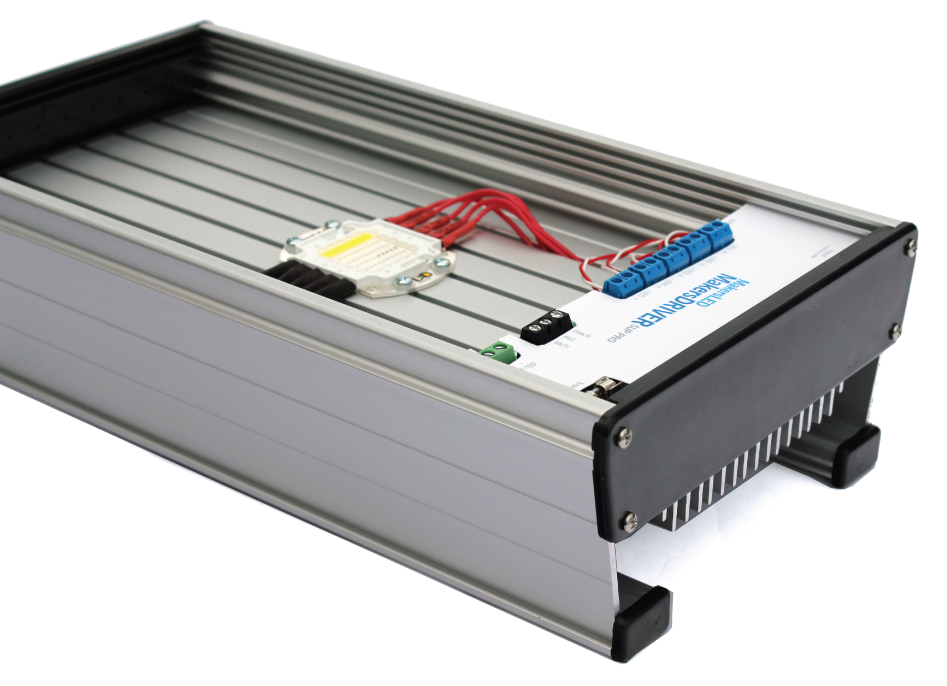

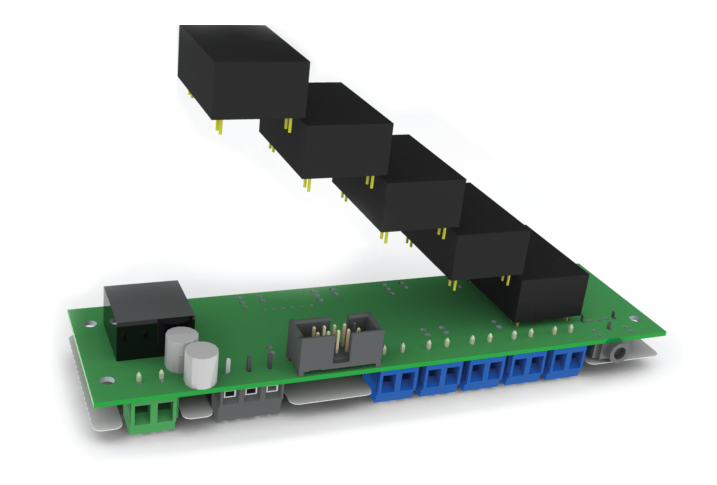

The MakersDRIVER 5UP PRO takes building finished DIY LED fixtures to a new level by simplifying power connections and providing multiple options for dimming control. Included: • MakersDRIVER 5UP PRO, with Overlay Cover• LDD "H" Meanwell Drivers not included• Docks into the MakersLED Heatsink• Drives up to 70 3v LEDs up to 1000mA (45V available per channel)• Up to 5 channels of dimming (14 LEDs/channel)• Manual dimming interface (requires accessory board, sold separately) MakersLED 5UP manual dimmer module• Multiple external control options available:- Data interface with MakersCONTROLLER lighting controller (addressable to 5 channels)- Accepts 0-10V DC analog lighting control signal (requires accessory board, sold separately - MakersLED 5UP manual dimmer module)• Daisy chain multiple MakersDRIVERS back to a MakersCONTROLLER• Powers one 12v Fan (no extra fan power supply needed!)• Fan failure detection – Flashes LEDs to alert failure (if fan is detected upon start-up)• Sockets provided for Meanwell LDD drivers allow for removal, upgrade and replacement• Utilizes inexpensive 48V DC power supplies (not Included)• Fused for added electrical safety• May co-exist with MakersDRIVER 2Up PRO when used with MakersCONTROLLER 90 day warranty*       Not Included:LDD "H" Drivers, Heatsink, 48V Power Supply, Wire/cables, Fan, LEDs. Specifications are subject to change Recommended for MakersLED Heatsinks 1ft and greater.*Warranty: 90 day limited warranty against defects in materials and workmanship. MakersLED LLC will determine the root cause of the defect, and your item may be repaired or replaced free of charge. Customers pay for shipping to our service location and we pay for the return shipment. Warranty does not cover failure caused by accident, misuse, abuse, alteration, or faulty installation.

Shipping & Returns

Free shipping over $200 in the USA

Dimensions
